Prefab Steel Structure House for Sports Venues and Workshop Warehouse Construction in Modern Design
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | xinyu |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $799.00/sets 1-24 sets |
| Payment Terms: | T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union, Cash, Escrow |
|
Detail Information |
|||
| Feature: | Waterproof, Solar Powered, Lightweight, Durable, Safe, Eco Friendly, Anti-Corrosion, Fire Resistant, Easy Operation, Easy Installation | Shape: | Rectangle |
|---|---|---|---|
| Warranty: | 1 Year | After-sale Service: | Online Technical Support |
| Application: | Steel Fabricated House, Shop, Toilet, COFFEE SHOP, Carport, PARTY, Meeting Pod, Guard House, Phone Booth, Construction Office, Accommodation, Bookstores, Booth, Smoking Pod, Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, L | Material: | Sandwich Panel |
| Use: | House | Product Type: | Green Houses |
| Design Style: | French | Product Name: | Quick Assembly Prefabricated House |
| Usage: | Workshop Warehouse Construction Office | Color: | Blue White |
| Size: | 20FT/40FT Customized | Door: | Steel Security Door |
| Window: | Aluminum Window | Floor: | Wooden Floor |
| Wall: | 50/75/100mm Wave Sandwich Panel | Type: | Light Steel Structure Frame |
| Advantage: | Environmental Protection Low Cost Recycle | ||
Product Description

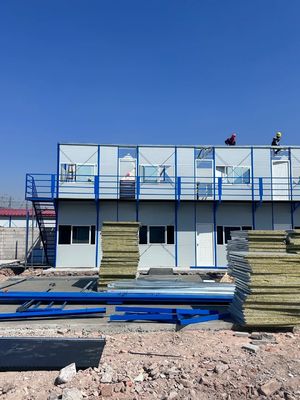

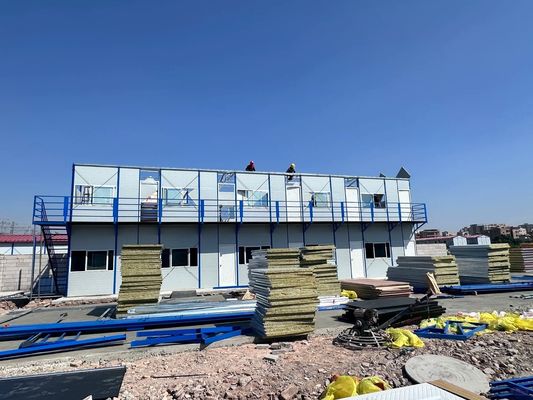

Flat roofed mobile houses use the strength of sandwich wall panels and roof panels, connected by nails, bolts, self-tapping screws, etc. to form a fixed mobile house system. The mobile house uses a light steel frame as the main structure, arranges the space with a standard module, and uses sandwich panels, PU tiles and roofing systems. It is easy to install and transport, simple and beautiful and can be reused, making temporary buildings an industrialized product.
Features
Advantages: Resistant to 7-magnitude earthquake and 10-magnitude typhoon.
Easy to construct and transport. Fireproof, waterproof, anti-corrosion, soundproof, heat-insulating.
Environmentally friendly materials: 18mm fiber cement board EPS/glass wool.
Modular sandwich doors, steel doors, aluminum doors, aluminum alloy sliding windows, all steel structures are well welded, and parts are assembled with bolts and nuts. The main steel structure is made of "usually 15-25 years" steel.
Sort | Name | Specification | ||
Specification | length | NM+160(N=4,5,6... M is modular, 1M=1820mm) | ||
Width | NM+160(N=3,4,5... M is modular, 1M=1820mm) | |||
Wall height | 5715mm | 8565mm | ||
Clear height | Ground floor :2425mm First floor :2685mm | Ground floor :2425mm First floor :2425mm Three floor:2685mm | ||
Standard accessory | Wall board | 50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k. | ||
Roof board | 50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k. | |||
Door | SIP with steel frame, single door with dimensions of 955*2024mm, furnished with a cylinder lock with 3keys. Doorframe is made of 1.5mm steel, 50mm thick EPS insulation foam. | |||
Window | PVC , white color, with dimensions of 1750*950mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. | |||
Base beam | C style steel. material:Q235.Painted | |||
Column | Double C style steel. material:Q235. modular pace: 1830mm. Painted | |||
Floor beam | Parallel truss(C style steel). material:Q235 Painted | |||
Floor purline | Gable truss(C style steel). material:Q235. Painted | |||

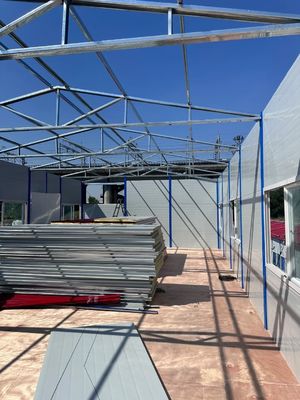

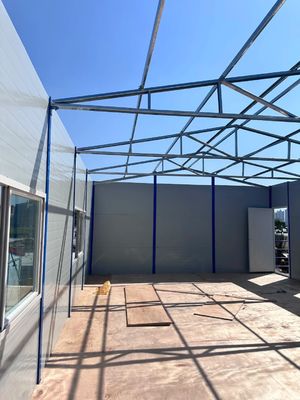

Roof beam | Gable truss(C style steel). material:Q235.Painted | |||
Roof purline | Gable truss(C style steel). material:Q235.Painted | |||
Inclined brace | round steel, material:Q235. Galvanized and Painted | |||

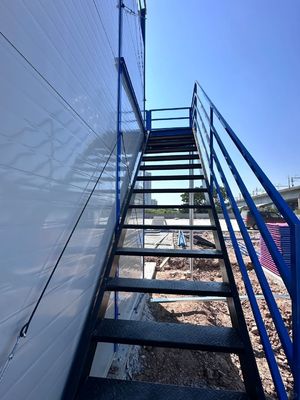

Stair | Steel stair, material: Q235. material:Q235.Painted | |||
Tread | press steel board | |||
Floor stab | 14mm plywood | |||
Option | Elevated ceiling | Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel | ||
Decorative floor | PVC, laminated or ceramic tile | |||
Drainage system | Provided plan, design and construction | |||
Electric system | Provided plan, design and construction | |||
Technical parameter | Bearing load | 50kg/m2 | ||
Wind pressure: | 0.6KN/M2 | 0.45KN/M2 | ||
Fire proof | B2 grade | |||
Resistant temperature | -20 to 50 | |||
The resistant earthquake grade | 7 fission activate. | |||
Thermal insulation: the wallboard adopts double-sided sandwich panels to achieve good thermal insulation.
Durable and economical, etc.: Steel frame structure design, the structure adopts special cold-formed galvanized steel components, earthquake resistance level 8 and wind resistance level 12, and the service life is more than 20 years.
We can offers a complete solution for the prefabricated container houses including design, production, installation,after-sales service with multiple application such as: container office, worksite container camp, accommodation containers, storage containers, staff dormitory, Shopping mall, stores, coffee shop, display showroom container, multiple unit bathroom, portable toilet, swimming pools, etc.
1.Q: Could you design a new and unique prefab house for me? A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service. 2.Q: What do I need to provide to build a prefab house? A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you. 3.Q: How to get the quotation of the project? A: If you can provide design drawings and required materials, we can quote according to your needs. Besides, If you don't have a drawing, we can also offer you a quotation after telling us the purpose and demand of your prefabricated house. 4.Q: How to control the cost of building a prefab house? A: After confirming the design plan, you can choose the corresponding building materials according to your own need since each material has its own price. 5.Q: what are the advantages of prefab house? A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use. 6.Q: What are the uses of this type of house? A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
